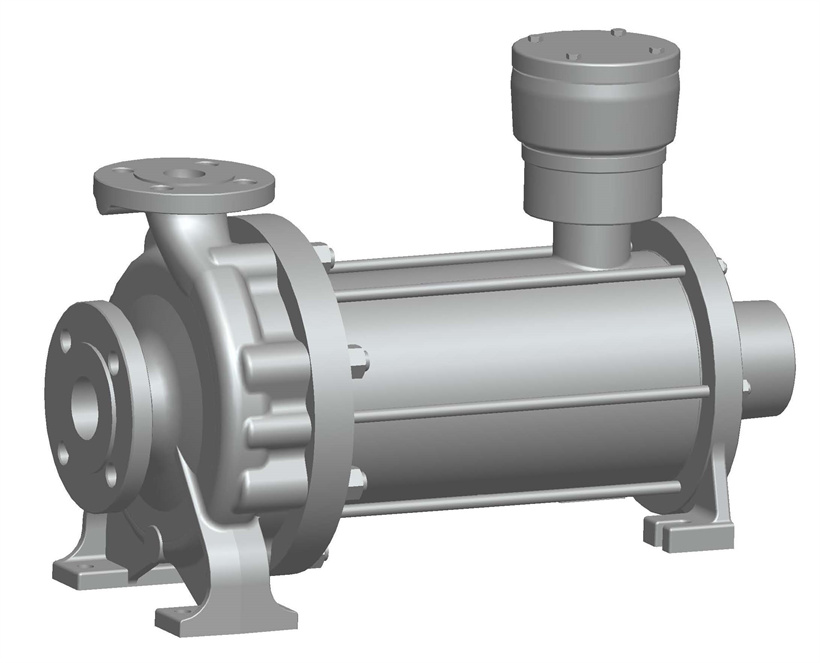

FLP(f)單級屏蔽泵

Single impeller canned motor pump FLP(f)

　　產品名稱：單級屏蔽泵

　　單級、單吸、懸臂結構、底腳支撐

　　FLP為標準型;

　　FLPf為易汽化型，高壓內循環，適合輸 送易汽化介質;

　　根據要求，可帶冷卻或保溫夾套。

　　口徑：DN25~DN300

　　流量：~1000 m3/h

　　揚程：~280 m

　　工作溫度：-120~100 ℃

　　額定壓力：1.6~10 MPa

　　功率：~200 kW

　　Product name: Single impeller canned motor pump

　　Single impeller, single suction, cantilever structure, supported by foot

　　FLP is the standard type.

　　FLPf is boiling type. It makes internal circulation at high pressure.

　　It is used to deliver those media boiling.

　　With cooling or insulation jacket as required.

　　Diameter: DN25~DN300

　　Capacity:~1000 m3/h

　　Head:~280 m

　　Operating temperature:-120~100 ℃

　　Rated pressure:1.6~10 MPa

　　Power:~200KW
